REST API Specification

POS Integration API

API v1.3.19 WPAY QA_1.3.19

REST API specification for integrating a third-party POS system with a WPAY payment terminal over a local network. Covers all transaction types, receipt options, async mode, and signature approval flow.

Introduction

Payment gateway integration with a POS system enables customers to make purchases quickly and securely from their POS device to the payment terminal. Integrators are responsible for meeting applicable PCI DSS and PCI Software Security Framework requirements.

The POS Integration API is consumed by a POS or middleware system talking to a payment terminal on a local network. All requests and responses use JSON.

Technical Requirements

SessionId — valid GUID/UUID generated by the POS software; maximum 36 characters; must be globally unique for each transaction request.
Base endpoint — the IP address (local network) of the terminal which runs the Payment app.
X-API-KEY — required when the TMS-configured authorization key is set. Missing or wrong key returns an error response. The client may generate the key in any form (maximum 32 characters); the value configured in TMS and the value sent in X-API-KEY must be identical. Sample TMS key: 6B9F2A81D3E47C5A0B1F9E8D7C6B5A43.

Test Tool

Postman REST client. Send requests, inspect responses, and easily debug REST APIs.

Quick Start

Configure the terminal IP address and port on the local network (the base endpoint of the Payment app).
Generate a sessionId (UUID, max 36 characters) — unique for each transaction request.
(Optional) Add the X-API-KEY header if TMS request authorization is configured.
Construct the request URI and POST or GET to the appropriate endpoint — see API Requests below.

Sync vs Async Mode

Transaction requests support two communication modes. The default is synchronous (AsyncMode disabled). Set AsyncMode enabled to use async mode — the terminal returns an immediate status acknowledgement and the client polls querytransaction for the final result.

Synchronous — default (all endpoints)

The POS sends a request and blocks until the terminal returns the full HTTP response. Single request, single response.

Summary

Default mode for all endpoints — transaction and non-transaction.
AsyncMode defaults to disabled.
POS waits and blocks until the HTTP response arrives.
Single request → single response.

Asynchronous — transaction endpoints only

Transactions in async mode allow the merchant to call the API to start the transaction and receive its status immediately, without waiting for the POS terminal to complete the transaction for a final response. The client retrieves the current status by calling querytransaction.

Summary

Only available for transaction endpoints (POST /transaction with AsyncMode enabled).
Initial response ResponseType is always "querytransaction".
POS must poll GET /querytransaction repeatedly using the same sessionId as the original transaction URL.
When Status = 11 (WaitingForSignatureConfirmationFromClient) with DigitalSig present, call POST /approvesignature (same sessionId) then continue polling — see Table ENUM-12.
When Status = 1 (TransactionCompleted), the Transaction object contains the full result — see Table ENUM-12.

Table ENUM-12 — Status and StatusText field values

Enum table — colocated with Sync vs Async. Used by Query Transaction and async Status on transaction responses. Also in Table Index.

Here are some values for the Status and StatusText fields returned in async mode responses (ResponseType: "querytransaction").

Value of "Status" field	Value of "StatusText" field	Describe
None = 0		No active transaction stage.
TransactionCompleted = 1	Transaction completed	The transaction has been completely processed. The `Transaction` object in the response contains the full result when status equals `1`.
Initialize = 2	Initializing transaction	The transaction is being initialized.
AwaitingUserInteraction = 3	Awaiting user interaction	Waiting for the user to complete required actions (signature, select account type ...)
WaitingForCard = 4	Waiting for card	Waiting for the card to be presented.
CardProcessing = 5	Card processing	The card is currently being processed.
TransactionProcessing = 6	Transaction Processing	The transaction is being processed.
TransactionProcessed = 7	Transaction Processed	The Transaction has been processed.
WaitingForCardRemove = 8	Waiting For Card Remove	The transaction requires selecting an waiting for card remove.
WaitingForMerchantCard = 9	Waiting For Merchant Card	The transaction requires the user to swipe merchant card.
WaitingForSignatureConfirmation = 10	Waiting For Signature Confirmation	The payment app is auto-approving the signature without POS app interaction.
WaitingForSignatureConfirmationFromClient = 11	Waiting For Signature Confirmation From Client	Waiting for the POS app to approve or reject the captured signature. Call Approve Signature (`POST /approvesignature`) with `DigitalSig` data, then continue polling.
GettingSignatureFromCustomer = 12	Getting Signature From Customer	The system is prompting the customer to provide a signature.
DCCSelecting = 13	DCC Selecting	The system is presenting DCC (Dynamic Currency Conversion) options to the user.
SelectAccountType = 14	Select Account Type	Waiting for the cardholder to select an account type.
EnterPin = 15	Enter PIN	Waiting for the cardholder to enter a PIN.
WaitingForProductData = 16	Waiting For Product Data	Waiting for product/SKU data from the POS.

API Requests

Request URI

The request URI is made up of three parts: the base URL, a sessionId, and the type of request to make.

The base endpoint is the IP address (local network) of the terminal which runs the Payment app.
A sessionId is a valid UID that identifies the current third-party software request. This must be generated by the POS using standard GUID/UUID generating libraries — maximum 36 characters — and must be a standard, globally unique UUID value for each transaction request.
The request type portion of the path is the endpoint suffix for the function being called (see Request Types below).
An API Request object should be constructed and posted to the appropriate API endpoint.

URL Pattern

https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/{{endpoint}}

Example URIs

URI
https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/transaction
https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/querytransaction
https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/merchantlist
https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/settlement
https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/approvesignature

Request Authorization

This feature is not a default-enabled one, so resellers need to set the key from TMS to restrict clients' requests. After configuring this authorization value, clients need to add it as a header item to authorize requests (X-API-KEY). The Authorization Key set in TMS allows a maximum of 32 characters.

There is no required generation algorithm. The client may create the key in any format they choose (letters, digits, hex string, etc.), as long as the same value is configured on TMS and sent in the X-API-KEY request header.

Sample Authorization Key used as a TMS template default:

Sample TMS Authorization Key

6B9F2A81D3E47C5A0B1F9E8D7C6B5A43

If the header is missing or contains an incorrect key, the terminal returns an error response.

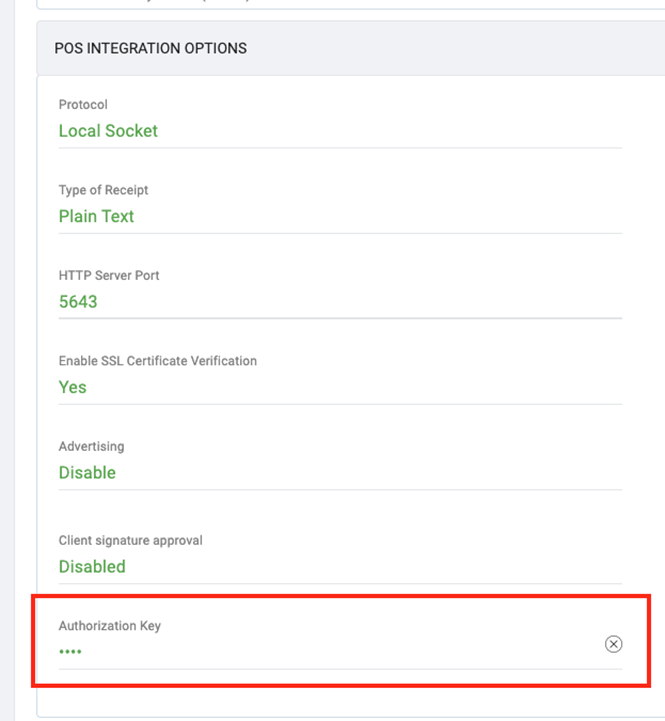

POS Integration Options screen showing Authorization Key field configured in TMS

POS Integration Options — the Authorization Key is configured on the terminal via TMS (maximum 32 characters). Clients must send the same value in the X-API-KEY request header when authorization is enabled. Sample key: 6B9F2A81D3E47C5A0B1F9E8D7C6B5A43.

Request Headers (all endpoints)

These headers apply to every API call in this document. They are not repeated in each endpoint example.

Header	Value	Required	Description
Content-Type	application/json	M	Must be set for all POST requests with a JSON body.
X-API-KEY	string(32)	O	Authorization key configured in TMS (maximum 32 characters). Any client-generated format is accepted if it matches the TMS value. Sample: `6B9F2A81D3E47C5A0B1F9E8D7C6B5A43`. Required only when TMS authorization is enabled.

Request Types

Here are the transaction types for each function type used in the URL request path:

Function Type	HTTP Method	Transaction Type
Get Merchant List	GET / POST	merchantlist
Get Allowed Transactions	POST	getAllowedTransactions
Health Check	GET	healthcheck
Bring App To Foreground	POST	bringapptoforeground
Purchase	POST	transaction
Refund Only	POST	transaction
Void	POST	transaction
Cash Out	POST	transaction
Purchase Cash	POST	transaction
MOTO Purchase	POST	transaction
MOTO Refund	POST	transaction
Pre-auth	POST	transaction
Pre-auth Complete	POST	transaction
Cancel Pre-Auth	POST	transaction
Incremental Pre-Auth	POST	transaction
Pre-auth Partial	POST	transaction
Pre-Auth Reversal	POST	transaction
Search Transaction	POST	transactionsearch
APM Transaction (Alipay / WeChat / CentraPay)	POST	transaction
Reprint	POST	reprint
Card Verification	POST	querycard
Settlement Enquiry	POST	settlement
Settlement Cutover	POST	settlement
Manual Host Logon	POST	logon
Print Stored Transactions	POST	printstoredtransactions
Print Pending Transactions	POST	printpendingtransaction
Cancel Transaction	GET / POST	canceltransaction
Query Transaction	GET	querytransaction
Voucher Entry	POST	voucherEntry
Shift Actions	POST	shiftactions
Reports	POST	reports
Transaction Listing	POST	transactionlisting
Dump Logs	POST	dumplogs
Approve Signature	POST	approvesignature

API Responses

Every endpoint returns a JSON body with the same top-level shape. HTTP status and business outcome are separate: a 200 OK can still contain a declined transaction, and a non-2xx response uses the same envelope with error fields in Response. This section describes the shared wrapper and the three response types the API returns.

Common response envelope

All responses use this wrapper. Endpoint-specific fields live inside Response.

Property	Type	M/O	Description
SessionId	string(36)	M	Echo of the `sessionId` from the request URI.
ResponseType	string	M	Identifies the operation that produced this response (e.g. `"transaction"`, `"logon"`, `"merchantlist"`). Matches the endpoint function — see API Requests → Request Types.
Response	object	M	Payload object. Shape depends on `ResponseType` and outcome — see sections below and each endpoint page.

Boolean encoding rules are documented in Boolean Type. Use that setting when interpreting Success values in this section.

Choosing the response path

After parsing the envelope, use the fields inside Response to decide which path applies:

Response.ErrMessage is present → API error / exception (HTTP is non-2xx). Read ErrMessage, Suggestion, and StatusCode. There is no Success field on this path.
Response.Success or Response.Transaction.Success is present → business outcome (HTTP is 200). Approved/completed vs declined/failed depends on the terminal's boolean encoding ("1"/"0" or true/false); read ResponseText on failure/decline.
Neither applies (e.g. merchantlist) → data payload only; HTTP 200 means the call succeeded.

HTTP status codes

The terminal sets the HTTP status on the wire. Response.StatusCode in the JSON body is the same value as a string (e.g. HTTP 403 → "StatusCode": "403").

HTTP	When	JSON `Response` shape
200	Request accepted; operation finished or data returned	Business fields — `Success`, `ResponseText`, `Transaction`, etc.
400	Invalid request data, bad `TxnType`, amount validation, malformed body	`ErrMessage`, `StatusCode: "400"`
401	`X-API-KEY` missing or incorrect (when TMS authorization is enabled)	`ErrMessage`, `StatusCode: "401"`
403	Terminal not ready — logon required, merchant not ready, terminal busy, feature not supported	`ErrMessage`, `StatusCode: "403"`, often `Suggestion`
500	Internal server error	May have no JSON body; some async operations defer the response until processing completes

How to read a response

HTTP status

200 — operation completed or data returned; check Success for approval vs decline.
400 / 401 / 403 — request rejected before processing; read Response.ErrMessage and Suggestion.
No response — connection failure or timeout; terminal app may be unreachable.

Business fields (HTTP 200)

Response.Success — true = success, false = failure (encoding per Boolean Type); read ResponseText on failure.
Response.Transaction.Success — same rule on transaction endpoints.
Async mode — poll Status / StatusText; see Sync vs Async.
Sync mode — the HTTP connection stays open until the terminal finishes and returns the full body.

Response types

1. Success (HTTP 200)

The operation completed. Where Success is present and true, result fields are populated. ResponseType matches the endpoint called (e.g. "transaction").

Example — approved transaction

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transaction",
  "Response": {
    "Transaction": {
      "TxnType": "P",
      "Success": "1",
      "lAmount": 100,
      "lszApprovalCode": "327710",
      "szAuthorizationResponseCode": "00"
    }
  }
}

2. Business failure (HTTP 200)

The terminal processed the request but the operation did not succeed (declined card, user cancel, host decline, etc.). HTTP status is still 200 — this is not an API error. Check Success is false and read ResponseText (or Transaction.ResponseText). Do not use ErrMessage on this path.

Example — declined transaction

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transaction",
  "Response": {
    "Transaction": {
      "TxnType": "P",
      "Success": "0",
      "ResponseText": "Transaction Cancelled"
    }
  }
}

3. Error / exception (HTTP 400 / 401 / 403)

The request was rejected before or instead of normal processing — invalid data, bad API key, terminal not logged on, merchant not ready, or terminal busy. The envelope is unchanged; ResponseType matches the endpoint called (e.g. "transaction" for POST .../transaction). Response contains ErrMessage, StatusCode, and optionally Suggestion — never Success or ResponseText.

Error response fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request transaction.
ResponseType	string(23)	M	Endpoint that was called (e.g. `"transaction"`, `"settlement"`, `"logon"`).
Response.ErrMessage	string	O	Error message — display to the operator.
Response.Suggestion	string	O	Recommended next action (e.g. perform manual logon). Populated for merchant-validation failures.
Response.StatusCode	string	O	Same value as the HTTP status, as a string (e.g. `"403"`).

Sample response — merchant not ready / logon required

{
  "SessionId": "2174267867",
  "ResponseType": "transaction",
  "Response": {
    "ErrMessage": "00986211 requires to Logon",
    "Suggestion": "Check your connection and process a Manual Logon to continue",
    "StatusCode": "403"
  }
}

Common error cases (HTTP 403 unless noted):

Logon required — merchant validation failed because the terminal is not logged on. ErrMessage and Suggestion come from the terminal. Call Manual Host Logon, then retry.
Merchant not ready — selected merchant cannot accept transactions. Check Mode via Get Merchant List — see Table ENUM-10.
Terminal busy — another operation is in progress, or auto-logon is running.
Invalid API key (401) — X-API-KEY header missing or wrong when TMS authorization is enabled.
Invalid request (400) — malformed JSON, invalid TxnType, or failed field validation.

Quick reference

Case	HTTP	Check
Approved transaction	200	`Response.Transaction.Success` = true
Declined transaction	200	`Success` = false; read `ResponseText`
Operation succeeded	200	`Response.Success` = true
Operation failed	200	`Response.Success` = false; read `ResponseText`
Logon / merchant not ready	403	`ErrMessage`, `Suggestion`, `StatusCode: "403"`
Terminal busy	403	`ErrMessage`, `StatusCode: "403"`
Invalid API key	401	`ErrMessage`, `StatusCode: "401"`
Invalid request	400	`ErrMessage`, `StatusCode: "400"`
Terminal unreachable	—	No HTTP response; use Health Check

Boolean Type

Boolean-like values are controlled by a TMS configuration.

The terminal uses one of two encodings for request and response bodies:

String mode — "1" / "0" (yes/no, enabled/disabled, approved/declined)
JSON boolean mode — true / false

Integrators must use the encoding that matches the terminal's TMS setting. Do not mix formats in a single request. Applies to Success, AsyncMode, WithReceiptImageData, DisablePrinting (transaction, APM, reprint, card status, settlement, offline transmission), transaction flag fields (fAuthorized, fCanVoid, etc.), and other boolean switches documented on each endpoint.

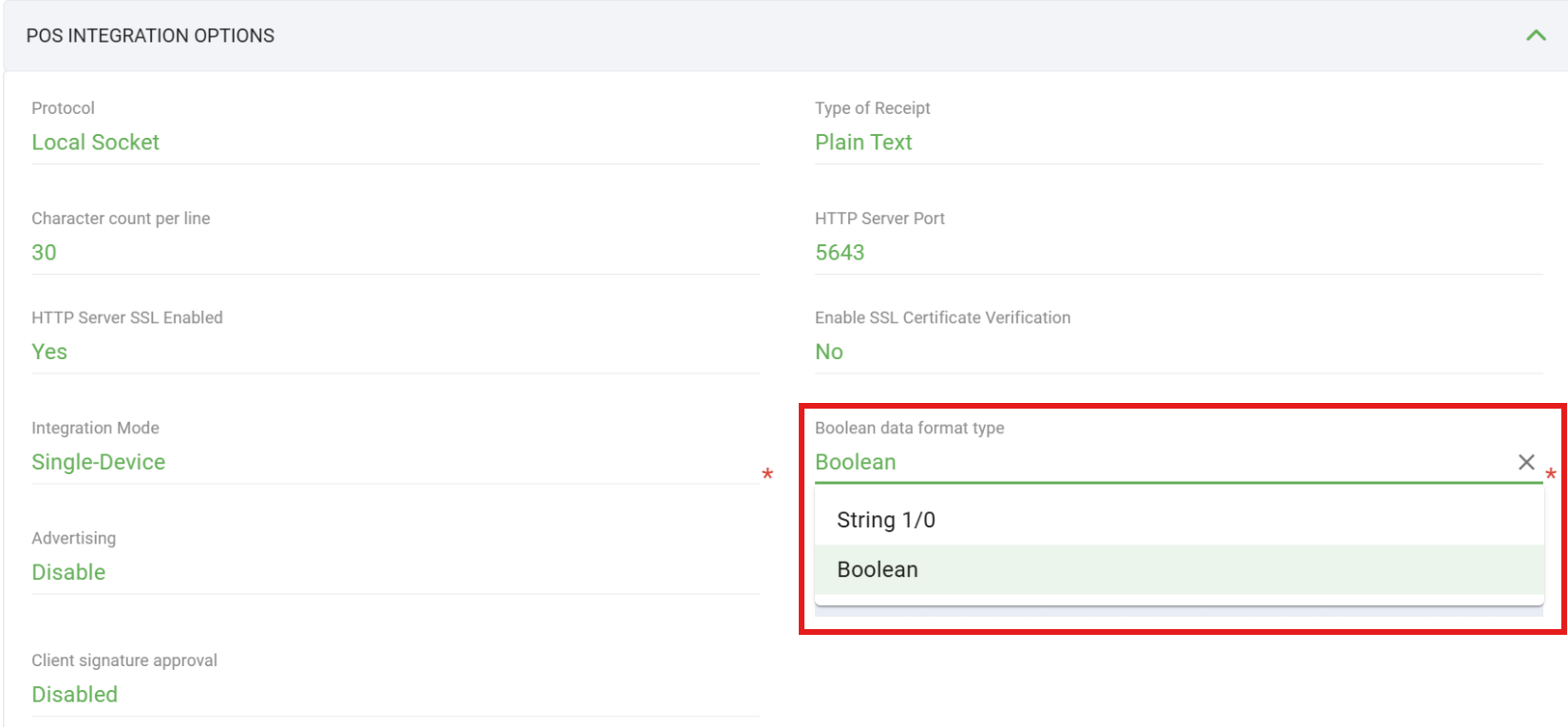

POS Integration Options screen showing Boolean data format type configured in TMS

POS Integration Options — the Boolean data format type is configured on the terminal via TMS. Choose String 1/0 for "1"/"0" encoding or Boolean for true/false encoding in request and response bodies.

JSON examples in this document may show one encoding (string or boolean) for illustration; always match the terminal TMS setting in live integrations.

Build a Server Validation Handler

When the terminal's HTTP server uses TLS, the POS client connects over https:// instead of http://. A custom server validation handler and ca.pem CA certificate are required only when HTTP Server SSL Enabled is set to Yes in TMS (POS Integration Options). If SSL is disabled (No), use plain HTTP to the configured port — no CA file or TLS handler is needed.

HTTP Server SSL (TMS)

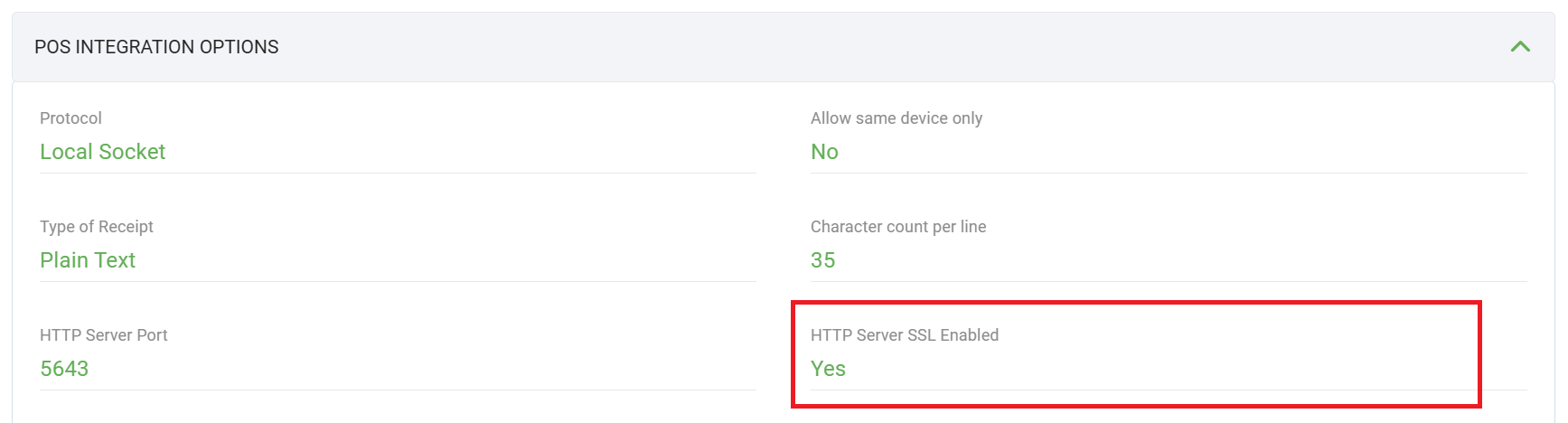

POS Integration Options screen showing HTTP Server SSL Enabled set to Yes in TMS

POS Integration Options — HTTP Server SSL Enabled is configured on the terminal via TMS. When set to Yes, the payment app serves the POS Integration API over HTTPS and the client must validate the server certificate (see below). When No, connections use HTTP only.

When SSL is enabled, building a server validation handler ensures the client trusts the payment terminal by validating its certificate against a specific CA (Certificate Authority). This is typically required when:

A private CA signs the server's certificate.
Custom validation rules are required beyond default system certificate validation.
The handler replaces or supplements the system's default trusted Certificate Authorities with your custom CA.

Prerequisites

Apply the following only when HTTP Server SSL Enabled = Yes:

Store the provided ca.pem file in a secure and accessible location for the client.
Confirm the client can read and use the ca.pem file for validation.

Steps to implement the handler

When SSL is enabled on the terminal, follow these steps on the POS client:

Step 1 — Store the CA certificate
Save the ca.pem file in a secure location accessible by the client.

Step 2 — Implement the custom handler
Create a function or method that:

Reads the ca.pem file to load the CA certificate.
Configures a validation callback that reads the server's certificate chain during a TLS handshake.
Validates the server certificate against the loaded CA (ensure ca.pem matches the CA used to sign the server certificate).
Returns an object or structure for secure connections (e.g. HTTP clients).

Step 3 — Use the handler in connections
Use the custom handler when establishing HTTPS connections to the terminal so the server certificate is validated against your CA.

Get Merchant List

Retrieves the list of configured merchants from the terminal. This request has no request body — all parameters are passed via headers only.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request transaction.
ResponseType	string	M	Always `"merchantlist"`.
Merchants	array	M	Array of merchant objects, each containing Id, Name, and Mode.
Id	string(2)	M	Merchant identifier.
Name	string	M	Merchant display name.
Mode	string	M	Merchant mode. Some possible values are mentioned in Table ENUM-10.

Table ENUM-10 — Mode field values

Enum table — colocated with Get Merchant List. Also in Table Index.

Here are some values for the Mode field.

Value of "Mode" field
None
LogOff
EOV
Online
RKIFail

Endpoint

GET/POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/merchantlist

No request body required

Response Example

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "merchantlist",
  "Response": {
    "Merchants": [
      {
        "Id": "1",
        "Name": "Main Merchant",
        "Mode": "Online"
      },
      {
        "Id": "2",
        "Name": "Second Merchant",
        "Mode": "LogOff"
      }
    ]
  }
}

Get Allowed Transactions

Returns the transaction types enabled for a merchant on this terminal (purchase, refund, pre-auth, APM wallets, etc.). Use this to build dynamic menus or validate TxnType before calling transaction.

Request Body Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	M	Merchant to query. See Table REQ-01.

Response Fields

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"getAllowedTransactions"`.
Merchant	string(2)	M	Echo of the requested merchant.
FunctionItems	array	M	List of allowed function entries for this merchant.
Id	int	M	Function identifier (on each `FunctionItems` element).
ParentId	int	M	Parent function identifier (on each `FunctionItems` element).

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/getAllowedTransactions

Request Example

{
  "Merchant": "01"
}

Response Example

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "getAllowedTransactions",
  "Response": {
    "Merchant": "01",
    "FunctionItems": [
      { "Id": 1, "ParentId": 0 },
      { "Id": 42, "ParentId": 1 }
    ]
  }
}

Health Check

Verifies that the terminal's payment app server is alive and reachable. The POS can send this request in parallel with active transactions without interference.

A successful response returns HTTP 200. No response (connection refused/timeout) indicates the server is down.

Endpoint

GET https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/healthcheck

No request body required

Response

HTTP 200 OK
(empty body — server is alive)

Bring App To Foreground

This function allows moving the POS app to the foreground if the application is in the background.

The request to bring the application to the foreground uses the POST method and does not require a request body to perform this function.

Response Fields

Below is a list of fields that will appear in the 'Bring Application to Foreground' response. Fields labeled with 'M' (Mandatory) are those that will appear when the request is either successful or failed.

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request transaction.
ResponseType	string(23)	M	ResponseType is the TransactionType of the requested transaction (`"bringapptoforeground"`).
Success	bool	M	Whether the operation succeeded (true) or failed (false).
ResponseText	string	O	Text of Response. Commonly occurs when a transaction is declined.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/bringapptoforeground

No request body required

Success
Failed
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "bringapptoforeground",
  "Response": {
    "Success": "1",
    "ResponseText": "Application brought to the foreground"
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "bringapptoforeground",
  "Response": {
    "Success": "0",
    "ResponseText": "Application is not allowed to bring itself to the foreground"
  }
}

Transaction

All financial transaction types use POST /v1/sessions/{{sessionId}}/transaction with the same request and response structure. Set TxnType to identify the operation — see subsections below (Purchase, Refund, Pre-auth, etc.).

Fields marked with M (Mandatory) must be assigned values. The Amount must be greater than 0 where applicable. Numbered lookup tables are grouped under Request field logic, Response field logic, and Field Enums — or use the Table Index.

Common Request Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	O	Specify the merchant to execute the transaction. See Table REQ-01.
TxnType	string(3)	M	Type of transaction — value depends on operation (see subsections).
Amount	long	M	Transaction amount in cents. Must be greater than 0 (where applicable).
TxnRef	string(64)	O	Reference number attached to the transaction. Appears on the receipt.
AccessCode	string(8)	O	Operator access code when the terminal requires it (e.g. Refund).
EnableTip	bool	O	Whether tip entry is offered. Default disabled.
AmtTip	long	O	AmtTip of the sale in cents.
EnablePreEMVFee	bool	O	When present, POS Integration owns PreEMV fee settings for this request. Exact JSON key casing required. See EnablePreEMVFee behaviour.
fPurchaseFeePercent	bool	O	If true, `PurchaseFee` is a percentage; if false, a fixed amount in cents. Used when POS owns PreEMV fee.
PurchaseFee	ushort	O	Purchase PreEMV fee value (percent or cents).
fCashOutFeePercent	bool	O	If true, `CashOutFee` is a percentage; if false, a fixed amount in cents. Used when POS owns PreEMV fee.
CashOutFee	ushort	O	Cash-out PreEMV fee value (percent or cents).
AsyncMode	bool	O	Default disabled. Set enabled for async mode — see Sync vs Async.
WithReceiptImageData	bool	O	If enabled, response includes `ReceiptData` and `DigitalSig` in base64 format.
DisablePrinting	bool	O	If enabled, disable receipt printing for this transaction.
ReceiptType	int	O	Defines the receipt format. See Table REQ-02.
PlainTextCharPerLine	short	O	Plain-text receipt width when `ReceiptType` is plain text.

EnableTip behaviour

If AmtTip > 0, the request is sent with the Tip value regardless of EnableTip.
If AmtTip is 0 and EnableTip is true and the payment app allows tip, a popup prompts the user to enter a Tip value.
If the payment app is not set up to allow tip, the request proceeds without a Tip value.

EnablePreEMVFee behaviour

Applies to TxnType P, C, and PC.
If EnablePreEMVFee is omitted, the terminal uses the merchant TMS PreEMV / PreSurcharge settings (standalone behaviour).
If EnablePreEMVFee is present (true or false), the request overrides TMS for this transaction: true enables PreEMV fee with the supplied fee fields; false disables PreEMV fee for the request.
JSON key must be exactly EnablePreEMVFee (capital EMV).

Reference — Request field logic

Lookup tables for common request fields — each table is linked from the matching row in Common Request Fields. See also Table Index.

Table REQ-01 — Merchant field logic

Merchant Field Value	Single Merchant	Multi Merchant
Not set or invalid (null, "0", "abc", etc.)	Automatically select the default merchant	Return error – Merchant Id not found
Valid value (parsable to int)	Use the provided select merchant	Use the provided select merchant

Table REQ-02 — ReceiptType field logic (request)

ReceiptType Value	Description
Not set	Uses TMS default.
0	Do not return receipt data.
1	Return receipt in HTML format.
2	Return receipt in plain text format.
Others	Treated as 'Not Set' value.

Transaction Response

Below is a list of fields in the transaction response. Single-transaction responses use Response.Transaction; list responses (e.g. Search Transaction) use Response.Transactions array. Fields labeled M appear whether the transaction is approved or declined. The response structure is identical for all transaction types.

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request transaction.
ResponseType	string(23)	M	ResponseType is the TransactionType of the requested transaction (`"transaction"`).
Success	bool	M	Whether the transaction is approved (true) or declined (false).
ResponseText	string	O	Text of Response. Commonly occurs when a transaction is declined.
PrinterStatus	string	O	Printer state text returned by the terminal when available.
ReceiptType	int	M	Indicates the receipt format returned. See Table RES-01.
Transactions	array	M	Includes a list of approved transactions corresponding to the `FuncType` on the terminal. Used in list responses; single transaction responses use `Transaction` object instead.
Merchant	string(2)	O	Merchant that executed the transaction.
TxnType	string(9)	M	Type of transaction (matches request `TxnType`).
IdShift	uint	M	Shift's identifier.
IdShiftName	uint	M	Shift Name's identifier.
lAmount	long	M	The approved amount.
lTipAmount	long	M	The approved tip amount.
lCashOut	uint	M	The approved cash amount.
lCashOutFee	long	M	The cash out transaction fees.
lSurChargeTax	long	M	The Tax surcharge.
lDiscount	long	M	Discount amount of the transaction.
lDiscountPercent	long	M	Discount Percentage of the transaction.
iReward	uint	M	The transaction reward.
lAuthorizedTotal	long	M	The total approved amount of the transaction.
lDonationAmount	long	M	The total approved donation amount.
iEntryMode	uint	M	Entry mode. See Table ENUM-04.
iCardType	uint	M	Type of card. See Table ENUM-03.
iCurrencyCode	uint	M	The currency code.
fsModify	uint	M	The current status of the payment record. See Table ENUM-01.
iPaymentType	uint	M	The Payment Type. See Table ENUM-05.
iCustomerLanguage	uint	M	The Customer Language. See Table ENUM-06.
fClosed	short	M	If the transaction has been completed.
fBatchError	short	M	If the batch is error.
fVoided	short	M	If the transaction has been voided (Voided).
fRefunded	bool	M	If the transaction has been refunded (Refunded).
fAuthorized	bool	M	If payment record was processed to host.
fSignature	bool	M	If it is a signature transaction.
iCVVStatus	uint	M	CVV status. See Table ENUM-13.
iMotoOrderType	uint	M	MOTO order type. See Table ENUM-14.
fCanAdjust	bool	M	If the transaction can adjust.
fCanVoid	bool	M	If the transaction can be voided (Can be voided).
fCanPreAuthTopUp	bool	M	If the transaction can pre-auth top up.
fCanPreAuthComplete	bool	M	If the transaction can preauth complete.
fCanVoidPreAuthComplete	bool	M	If the transaction can void preauth complete.
fCanGoOffline	bool	M	If the transaction allows for offline stored and forward.
lszCustomerReference	string	O	Customer reference number from the payment record.
lszReferenceNumberKey	string	O	Reference number search key.
lszApprovalCodeKey	string	O	Approval code search key.
lszSequenceNumber	string	O	Sequence number from the payment record.
Date	string(8)	O	The Date is used for searching. Formatted as `YYYYMMDD`.
Time	string(10)	O	The Time is used for searching. Formatted as `hh:mm:ss`.
AuthorizationExpiryDate	string(8)	O	Authorization expiry date. Formatted as `YYYYMMDD`.
szAuthorizationResponseCode	string	M	The approval response code of the transaction.
lszApprovalCode	string	O	The approval code of the transaction.
szReferenceNumber	string	O	Reference number (RRN) from the host.
szTransactionId	string	O	Transaction identifier from the host.
lszSTAN	string	O	The Systems Trace Audit Number of the transaction.
szIssuerId	string	O	Issuer identifier.
szCardHolderName	string	O	Cardholder name.
szStreet	string	O	Cardholder street address (MOTO).
szApartment	string	O	Cardholder apartment (MOTO).
szZipCode	string	O	Cardholder postal code (MOTO).
iReversalReason	uint	M	The reason for reversal. See Table ENUM-07.
szProcessedLaterNumber	string	O	Processed-later reference number when applicable.
lszCardLogo	string	M	Card Logo.
szQRCode	string	O	The URL address storing the transaction receipt.
byPinType	byte	M	Pin Type. See Table ENUM-08.
byPinStatus	byte	M	Pin Status. See Table ENUM-09.
iNoCVVOption	uint	M	The reason of the no CVV.
byCDCVM	byte	M	The cvm value of card.
iAccountType	uint	M	The account type of transaction. See Table ENUM-02.
lszEndCardNumber	string	O	The last four digits of the card number used to perform this transaction.
szMaskedCardNumber	string	O	The card number has been masked.
lServiceFees	long	O	The surcharge fee for the transaction. Only shown when it has a value.
lPreEMVPurchaseFee	long	O	Applied PreEMV purchase fee in cents. Only returned when greater than 0.
lPreEMVCashOutFee	long	O	Applied PreEMV cash-out fee in cents. Only returned when greater than 0.
lFee	long	O	The fee for the transaction. Only shown when it has a value.
PID	uint	O	ID of payment.
ReceiptData	string	O	Contains the receipt data of the transaction.
ReceiptLogo	string	O	Contains the logo to be printed on the receipt.
DigitalSig	string	O	Contains the digital signature data to be printed on the receipt.

Reference — Response field logic

Lookup tables for response fields — linked from Transaction Response and reused by Search, Reprint, and Card Verification responses.

Table RES-01 — ReceiptType field logic (response)

ReceiptType Value	Description
0	Do not return receipt data.
1	Return receipt in HTML format.
2	Return receipt in plain text format.

Reference — Field Enums

Enum value tables for transaction response fields. Each table is linked from the matching row in Transaction Response. Jump: ENUM-01 · ENUM-02 · ENUM-03 · ENUM-04 · ENUM-05 · ENUM-06 · ENUM-07 · ENUM-08 · ENUM-09 · ENUM-13 · ENUM-14

Table ENUM-01 — fsModify field values

Value of "fsModify" field
PAYMENT_MODIFY_ADJUST = 0x00000001
PAYMENT_MODIFY_VOID = 0x00000002
PAYMENT_MODIFY_PARTIALVOID = 0x00000004
PAYMENT_MODIFY_REVERSED = 0x00000008
PAYMENT_MODIFY_STOREFORWARD = 0x00000010
PAYMENT_MODIFY_PENDING = 0x00000020
PAYMENT_MODIFY_OFFLINE = 0x00000100
PAYMENT_MODIFY_PARTIALPREAUTHCOMPLETE = 0x00000200
PAYMENT_MODIFY_PREAUTHCOMPLETE = 0x00000400
PAYMENT_MODIFY_DELAYEDPREAUTHCOMPLETE = 0x00000800
PAYMENT_MODIFY_EOV = 0x00001000
PAYMENT_MODIFY_PENDING_CANCELFAIL = 0x00002000
PAYMENT_MODIFY_EMV_ERROR = 0x40000000
PAYMENT_MODIFY_CANCELLED = 0x80000000

Table ENUM-02 — iAccountType field values

Value of "AccountType" field
ACCOUNT_TYPE_SAVINGS = "0"
ACCOUNT_TYPE_CHEQUE = "1"
ACCOUNT_TYPE_CREDIT = "2"

Table ENUM-03 — iCardType field values

Here are some values for the iCardType field.

CardType	CardType
CARD_NONE = 0	CARD_UNIONPAY = 75
CARD_DEBIT = 1	CARD_TROY = 76
CARD_VISADEBIT = 2	CARD_SPARE1 = 77
CARD_DEBITMASTER = 3	CARD_SPARE2 = 78
CARD_AMEXDEBIT = 4	CARD_SPARE3 = 79
CARD_JCBDEBIT = 5	CARD_SPARE4 = 80
CARD_DISCOVERDEBIT = 6	CARD_SPARE5 = 81
CARD_UNIONPAYDEBIT = 7	CARD_SPARE6 = 82
CARD_INTERACT = 8	CARD_SPARE7 = 83
CARD_MAESTRO = 9	CARD_SPARE8 = 84
CARD_TROYDEBIT = 10	CARD_SPARE9 = 85
CARD_SPAREDEBIT1 = 11	CARD_SPARE10 = 86
CARD_SPAREDEBIT2 = 12	CARD_SPARE11 = 87
CARD_SPAREDEBIT3 = 13	CARD_SPARE12 = 88
CARD_SPAREDEBIT4 = 14	CARD_SPARE13 = 89
CARD_SPAREDEBIT5 = 15	CARD_SPARE14 = 90
CARD_SPAREDEBIT6 = 16	CARD_SPARE15 = 91
CARD_SPAREDEBIT7 = 17	CARD_SPARE16 = 92
CARD_SPAREDEBIT8 = 18	CARD_SPARE17 = 93
CARD_SPAREDEBIT9 = 19	CARD_SPARE18 = 94
CARD_SPAREDEBIT10 = 20	CARD_SPARE19 = 95
CARD_ALLIEDPDEBIT = 21	CARD_SPARE20 = 96
CARD_ARBUCKLEDEBIT = 22	CARD_ALLIEDP = 97
CARD_ASBPRVLBDEBIT = 23	CARD_ARBUCKLE = 98
CARD_ATSDEBIT = 24	CARD_ASBPRVLB = 99
CARD_BABYCITYDEBIT = 25	CARD_ATS = 100
CARD_BARTRCRDDEBIT = 26	CARD_BABYCITY = 101
CARD_CASHRWDSDEBIT = 27	CARD_BARTRCRD = 102
CARD_CRTDEBIT = 28	CARD_CASHRWDS = 103
CARD_CSLDEBIT = 29	CARD_CRT = 104
CARD_DRIVEDEBIT = 30	CARD_CSL = 105
CARD_EAZYCDDEBIT = 31	CARD_DRIVE = 106
CARD_ECARDDEBIT = 32	CARD_EAZYCD = 107
CARD_ECARDZGDEBIT = 33	CARD_ECARD = 108
CARD_ECARDZLDEBIT = 34	CARD_ECARDZG = 109
CARD_ECOM1DEBIT = 35	CARD_ECARDZL = 110
CARD_EFTPOSDEBIT = 36	CARD_ECOM1 = 111
CARD_ELOYALTYDEBIT = 37	CARD_EFTPOS = 112
CARD_EZIPAYDEBIT = 38	CARD_ELOYALTY = 113
CARD_FFCARDDEBIT = 39	CARD_EZIPAY = 114
CARD_FLEETDEBIT = 40	CARD_FFCARD = 115
CARD_FLYBUYDEBIT = 41	CARD_FLEET = 116
CARD_FPFGIFTDEBIT = 42	CARD_FLYBUY = 117
CARD_GENIEDEBIT = 43	CARD_FPFGIFT = 118
CARD_GIFTSTNDEBIT = 44	CARD_GENIE = 119
CARD_INDUEDEBIT = 45	CARD_GIFTSTN = 120
CARD_INSIGHTDEBIT = 46	CARD_INDUE = 121
CARD_LOYALTYDEBIT = 47	CARD_INSIGHT = 122
CARD_MOBILDEBIT = 48	CARD_MOBIL = 123
CARD_MTAGIFTDEBIT = 49	CARD_MTAGIFT = 124
CARD_NPDDEBIT = 50	CARD_NPD = 125
CARD_ONECARDDEBIT = 51	CARD_ONECARD = 126
CARD_POSTIEDEBIT = 52	CARD_POSTIE = 127
CARD_QCARDDEBIT = 53	CARD_QCARD = 128
CARD_RD1DEBIT = 54	CARD_RD1 = 129
CARD_ROCKGASDEBIT = 55	CARD_ROCKGAS = 130
CARD_STARCARDDEBIT = 56	CARD_STARCARD = 131
CARD_SWIPEGFTDEBIT = 57	CARD_SWIPEGFT = 132
CARD_SWIPELOYDEBIT = 58	CARD_SWIPELOY = 133
CARD_TRUREWRDDEBIT = 59	CARD_TRUREWRD = 134
CARD_TTCRDSDEBIT = 60	CARD_TTCRDS = 135
CARD_TTLSTOREDEBIT = 61	CARD_TTLSTORE = 136
CARD_VIIDEBIT = 62	CARD_VII = 137
CARD_WAPDEBIT = 63	CARD_WAP = 138
CARD_WESTFLDDEBIT = 64	CARD_WESTFLD = 139
CARD_WPGDEBIT = 65	CARD_WPG = 140
CARD_ZBIZDEBIT = 66	CARD_ZBIZ = 141
CARD_ZCARDDEBIT = 67	CARD_ZCARD = 142
CARD_CREDIT = 68	CARD_GIFT = 143
CARD_VISA = 69	CARD_LOYALTY = 144
CARD_MASTER = 70	CARD_CASH = 145
CARD_AMEX = 71	CARD_CHEQUE = 146
CARD_JCB = 72	CARD_EBTCASH = 147
CARD_DINERS = 73	CARD_EBTSNAP = 148
CARD_DISCOVER = 74	CARD_EBTWIC = 149
CARD_PREPAID_CLOSEDLOOP = 150	CARD_ALTCNP_PAYPAL = 151
ALLCARDS = 152	CARD_UNKNOWN = 153

Table ENUM-04 — EntryMode / iEntryMode field values

Used in Transaction Response (iEntryMode) and Card Verification response (EntryMode).

Value	Name
0	EM_NONE
1	EM_POS
2	EM_IMPRINT
3	EM_MOTO
4	EM_SWIPED
5	EM_MANUAL
6	EM_RFID
7	EM_CONTACTLESS_ISO
8	EM_CONTACTLESS_MAGSTRIPE
9	EM_CONTACTLESS_DOMESTIC
10	EM_CONTACTLESS_NFC
11	EM_CONTACTLESS_VAS
12	EM_SMC
13	EM_ALIPAY
14	EM_WECHAT
15	EM_END
16	EM_ECOMMERCE
17	EM_CENTRAPAY
18	EM_GIFT_REDEEM
19	EM_DIRECTPAY

Table ENUM-05 — iPaymentType field values

Payment Type	Payment Type
PAYMENT_TYPE_SALE = 0	PAYMENT_TYPE_PREAUTHTOPUP = 12
PAYMENT_TYPE_REFUND = 1	PAYMENT_TYPE_PREAUTHDELAY = 13
PAYMENT_TYPE_CASHADVANCE = 2	PAYMENT_TYPE_PREAUTHPARTIAL = 14
PAYMENT_TYPE_PREAUTH = 3	PAYMENT_TYPE_PREAUTHCANCEL = 15
PAYMENT_TYPE_PREAUTHCOMPLETE = 4	PAYMENT_TYPE_TIP = 16
PAYMENT_TYPE_BALANCEINQUIRY = 5	PAYMENT_TYPE_REFUNDBALANCE = 17
PAYMENT_TYPE_DEPOSIT = 6	PAYMENT_TYPE_IMPRINTER = 20
PAYMENT_TYPE_SETTLE = 7	PAYMENT_TYPE_AUTHONLY = 60
PAYMENT_TYPE_INSTALLMENTSALE = 10	PAYMENT_TYPE_REGISTER = 100
PAYMENT_TYPE_LATEINTERESTINSTALLMENTSALE = 11	PAYMENT_TYPE_ACTIVATE = 101
PAYMENT_TYPE_DEACTIVATE = 102	PAYMENT_TYPE_RELOAD = 103
PAYMENT_TYPE_REDEEMED = 104	PAYMENT_TYPE_GIFT_REVSERD = 105
PAYMENT_TYPE_GIFT_REDEEM_FUNDS = 106	PAYMENT_TYPE_GIFT_SALE = 107

Table ENUM-06 — iCustomerLanguage field values

Locale code → language name → numeric value (payment app locale catalog; default supported locale is en_US = 1).

Locale	Language	Value
en_US	English (US)	1
de_DE	German (Germany)	2
zh_CN	Chinese (PRC)	3
zh_TW	Chinese (Taiwan)	4
cs_CZ	Czech (Czech Republic)	5
nl_BE	Dutch (Netherlands)	6
en_AU	English (Australia)	7
en_GB	English (Britain)	8
en_CA	English (Canada)	9
en_NZ	English (New Zealand)	10
en_SG	English (Singapore)	11
fr_BE	French (Belgium)	12
fr_CA	French (Canada)	13
fr_FR	French (France)	14
fr_CH	French (Switzerland)	15
de_AT	German (Austria)	16
de_LI	German (Liechtenstein)	17
de_CH	German (Switzerland)	18
it_IT	Italian (Italy)	19
it_CH	Italian (Switzerland)	20
ja_JP	Japanese (Japan)	21
ko_KR	Korean (Korea)	22
pl_PL	Polish (Poland)	23
ru_RU	Russian (Russia)	24
es_ES	Spanish (Spain)	25
ar_EG	Arabic (Egypt)	26
ar_IL	Arabic (Israel)	27
bg_BG	Bulgarian (Bulgaria)	28
ca_ES	Catalan (Spain)	29
hr_HR	Croatian (Croatia)	30
da_DK	Danish (Denmark)	31
en_IN	English (India)	32
fi_FI	Finnish (Finland)	33
en_IE	English (Ireland)	34
en_ZA	English (South Africa)	35
el_GR	Greek (Greece)	36
iw_IL	Hebrew (Israel)	37
hi_IN	Hindi (India)	38
hu_HU	Hungarian (Hungary)	39
in_ID	Indonesian (Indonesia)	40
lt_LT	Lithuanian (Lithuania)	41
lv_LV	Latvian (Latvia)	42
nb_NO	Norwegian-Bokmol (Norway)	43
pt_BR	Portuguese (Brazil)	44
sr_RS	Serbian (Cyrillic,Serbia)	45
sk_SK	Slovak (Slovakia)	46
sl_SI	Slovenian (Slovenia)	47
es_US	Spanish (US)	48

Table ENUM-07 — iReversalReason field values

Value
AUTO_REVERSAL_POWERFAILURE = 1
AUTO_REVERSAL_SIGNATURE = 2
AUTO_REVERSAL_NETWORK = 3
AUTO_REVERSAL_MACVALIDATION = 4
AUTO_REVERSAL_MESSAGEVALIDATION = 5
AUTO_REVERSAL_INVALIDRESPONSECODE = 6
AUTO_REVERSAL_POWERLINKFAILURE = 7
AUTO_REVERSAL_TRANSACTIONVOID = 8
AUTO_REVERSAL_INTERNALDEVICEFAILURE = 9
AUTO_REVERSAL_CARDREMOVED = 10
AUTO_REVERSAL_CARDDECLINED = 11

Table ENUM-08 — byPinType field values

Value
PIN_TYPE_NO_PIN = 0
PIN_TYPE_ONLINE = 1
PIN_TYPE_OFFLINE_PLAINTEXT = 2
PIN_TYPE_OFFLINE_ENCRYPTED = 3

Table ENUM-09 — byPinStatus field values

Value
PIN_NOT_PROMPTED = 0
PIN_PROMPTED_AND_CANCELLED = 1
PIN_PROMPTED_AND_TIMEDOUT = 2
PIN_PROMPTED_AND_ENTERED = 3
PIN_PROMPTED_AND_BYPASSED = 4

Table ENUM-13 — iCVVStatus field values

Value	Name
0	None
1	CardNotPresent
2	Unreadable
3	CardHolderStatesCVVnotOnCard

Table ENUM-14 — iMotoOrderType field values

Value	Name
0	UnknownOrNotApplicable
1	MailOrder
2	TelephoneOrder
3	InternetOrder

Endpoint (all transaction types)

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/transaction

Generic Request Example (Purchase)

{
  "Merchant": "01",
  "TxnType": "P",
  "EnableTip": 1,
  "AmtTip": 100,
  "Amount": 200,
  "TxnRef": "12345567890",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Approved
Declined
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transaction",
  "Response": {
    "Transaction": {
      "Merchant": "1",
      "TxnType": "P",
      "Success": "1",
      "IdShift": 1,
      "IdShiftName": 0,
      "lAmount": 100,
      "lTipAmount": 0,
      "lCashOut": 0,
      "lAuthorizedTotal": 100,
      "iEntryMode": 7,
      "iCardType": 69,
      "iAccountType": 2,
      "szAuthorizationResponseCode": "00",
      "lszApprovalCode": "327710",
      "lszSTAN": "000018",
      "lszEndCardNumber": "2955",
      "szMaskedCardNumber": "**** ***** **** 2955",
      "PID": 8,
      "Date": "20240404",
      "Time": "15:14:02",
      "ReceiptType": 1
    }
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transaction",
  "Response": {
    "Transaction": {
      "TxnType": "P",
      "Success": "0",
      "ResponseText": "Transaction Cancelled",
      "lAmount": 0,
      "lAuthorizedTotal": 0,
      "ReceiptType": 1
    }
  }
}

Response examples apply to all transaction types. Only TxnType and populated fields differ.

Transaction Types

Purchase TxnType: `P`

The purchase transaction type allows the merchant to perform a sale, it uses the transaction request format.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"P"` (Purchase).
Amount	long	M	Amount of sale in cents. Must be greater than 0.
EnableTip	bool	O	Indicates could Tip or not. Default `'0'` (Disabled Tip). See EnableTip notes.
AmtTip	long	O	AmtTip of the sale in cents.

Request Example — Purchase

{
  "Merchant": "01",
  "TxnType": "P",
  "EnableTip": 1,
  "AmtTip": 100,
  "Amount": 200,
  "TxnRef": "12345567890",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Refund TxnType: `R`

A refund transaction type allows the merchant to refund a sale, it uses the transaction request format.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"R"` (Refund).
Amount	long	M	Refund amount in cents. Must be greater than 0.
AccessCode	string(8)	O	Operator access code when the terminal requires it for refund.

Request Example — Refund

{
  "Merchant": "01",
  "TxnType": "R",
  "Amount": 1000,
  "TxnRef": "{{txnRef}}",
  "AccessCode": "0000",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Void TxnType: `V`

Voids an approved transaction. Uses POST .../transaction with TxnType: "V". Amount is not required — the terminal voids the full original amount. Requires lszApprovalCode and lszSTAN from the original transaction (same pattern as Cancel Pre-Auth).

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"V"` (Void).
lszApprovalCode	string	M	Approval code from the original transaction. See linking options below.
lszSTAN	string	M	STAN from the original transaction.
Merchant	string(2)	O	Merchant that owns the original transaction. See Table REQ-01.

Linking to the original transaction

Option 1: Call Search Transaction (typically FuncType: "Purchase"), select a voidable record, copy lszApprovalCode and lszSTAN.
Option 2: Pass AuthCode and STAN saved from the original approved response.
Amount is not required for Void (full original amount).

Request Example — Void

{
  "Merchant": "01",
  "TxnType": "V",
  "lszApprovalCode": "327710",
  "lszSTAN": "000018",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Cash Out TxnType: `C`

The cash-out transaction type allows the merchant to perform a cash-out transaction, it uses the transaction request format.

Also uses the applicable common request fields. For Cash Out, send the cash amount in AmtCash instead of the common Amount field. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"C"` (Cash Out).
AmtCash	long	M	Cash-out amount in cents. Must be greater than 0. Do not send this value in `Amount`.

Request Example — Cash Out

{
  "Merchant": "01",
  "TxnType": "C",
  "AmtCash": 10000,
  "TxnRef": "{{txnRef}}",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Purchase & Cash TxnType: `PC`

The purchase & cash transaction type allows the merchant to perform a sale and also withdraw cash, it uses the transaction request format.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"PC"` (Purchase & Cash).
Amount	long	M	Purchase amount in cents. Must be greater than 0.
AmtCash	long	M	Cash-out amount in cents. Must be greater than 0.

Request Example — Purchase & Cash

{
  "Merchant": "01",
  "TxnType": "PC",
  "Amount": 1000,
  "AmtCash": 2000,
  "TxnRef": "{{txnRef}}",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

MOTO Purchase TxnType: `MP`

The moto purchase transaction type allows the merchant to perform a sale with a manually entered transaction that has been generated from a mail order or a telephone order, it uses the transaction request format.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"MP"` (MOTO Purchase).
Amount	long	M	Amount in cents. Must be greater than 0.
EnableTip	bool	O	Whether tip entry is offered. Default disabled.
AmtTip	long	O	AmtTip of the sale in cents.
Pan	string(20)	O	Card number. If omitted, operator enters on terminal.
DateExpiry	string(4)	O	Card expiry in `MMYY` format.
CVV	string(4)	O	Card CVV/CVC.
CardName	string(16)	O	Cardholder name.

Request Example — MOTO Purchase

{
  "Merchant": "01",
  "TxnType": "MP",
  "TxnRef": "{{txnRef}}",
  "EnableTip": 1,
  "AmtTip": 200,
  "Amount": 2000,
  "Pan": "6367172100001111",
  "DateExpiry": "1249",
  "CVV": "120",
  "CardName": "Paymark Test",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

MOTO Refund TxnType: `MR`

A moto refund transaction type allows the merchant to refund a sale with a manually entered transaction, it uses the transaction request format.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"MR"` (MOTO Refund).
Amount	long	M	Refund amount in cents. Must be greater than 0.
Pan	string(20)	O	Card number.
DateExpiry	string(4)	O	Card expiry in `MMYY`.
CardName	string(16)	O	Cardholder name.
CVV	string(4)	O	Card CVV.

Request Example — MOTO Refund

{
  "Merchant": "00",
  "TxnType": "MR",
  "Amount": 100,
  "TxnRef": "{{txnRef}}",
  "Pan": "6367172100001111",
  "DateExpiry": "1249",
  "CardName": "Paymark Test",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Pre-auth Family

Pre-auth Family — Developer Guide

Pre-auth reserves funds on the card without capturing the final amount. Follow-up operations reference the original authorization using lszApprovalCode and lszSTAN. All pre-auth transactions use the same transaction request format and share the transaction response structure.

Typical flow

Step	TxnType	What it does	Source record
1	PA	Authorize — reserve funds on the card.	—
2a	AC	Complete — capture the final amount.	Original `PA` (`FuncType: PreAuth`)
2b	PAC	Cancel Pre-Auth — release the reserved funds.	Original `PA` (`FuncType: PreAuth`)
2c	PT	Incremental Pre-Auth — increase the reserved amount.	Original `PA` (`FuncType: PreAuth`)
2d	PP	Partial — capture part of the reserved amount.	Original `PA` (`FuncType: PreAuth`)
2e	PR	Pre-Auth Reversal — reverse an open pre-auth.	Original `PA` (`FuncType: PreAuth`)

Linking follow-up requests

Follow-up types (AC, PAC, PT, PP, PR) require lszApprovalCode and lszSTAN in the request. Two ways to obtain them:

Option 1 — Search Transaction: Call Search Transaction with the correct FuncType, pick a record from Response.Transactions[], and copy lszApprovalCode / lszSTAN.
Option 2 — POS-managed: Store AuthCode and STAN from the original transaction response in your POS database and pass them in the follow-up request.

Search Transaction ↔ Pre-auth

Use Search Transaction to list approved records on the terminal before performing a follow-up:

FuncType: "PreAuth" — find original pre-auths for Complete, Cancel Pre-Auth, Incremental Pre-Auth, Partial, Pre-Auth Reversal, or Pre-Auth Inquiry.
FuncType: "PreAuthComplete" — Pre-Auth Complete Inquiry search.

Search filters are optional, including FuncType.

Pre-auth TxnType: `PA`

A pre-auth transaction type allows the merchant to pre-auth a sale, it uses the transaction request format.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"PA"` (Pre-auth).
Amount	long	M	Pre-auth amount in cents. Must be greater than 0.

After approval

Save lszApprovalCode and lszSTAN from Response.Transaction. You need them for Complete, Cancel, Top Up, or Partial — either stored in your POS (Option 2) or retrieved later via Search Transaction with FuncType: "PreAuth" (Option 1). See Pre-auth Guide.

Request Example — Pre-auth

{
  "Merchant": "01",
  "TxnType": "PA",
  "Amount": 1500,
  "TxnRef": "123415890",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Pre-auth Complete TxnType: `AC`

A preauth complete transaction type allows the merchant to complete a preauth sale.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"AC"` (Pre-auth Complete).
Amount	long	M	Final charge amount in cents. Must be greater than 0.
lszApprovalCode	string	M	Approval code from the original Pre-auth. Obtain via Search Transaction (`FuncType: "PreAuth"`) or from the stored `PA` response.
lszSTAN	string	M	STAN from the original Pre-auth. Obtain via Search Transaction (`FuncType: "PreAuth"`) or from the stored `PA` response.

Linking to the original pre-auth

Option 1: Search with FuncType: "PreAuth", select a record from Response.Transactions[], use its lszApprovalCode and lszSTAN.
Option 2: Pass AuthCode and STAN you saved from the original PA response.

Request Example — Pre-auth Complete

{
  "Merchant": "01",
  "TxnType": "AC",
  "Amount": 100,
  "lszApprovalCode": "328958",
  "lszSTAN": "000030",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Cancel Pre-Auth TxnType: `PAC`

Cancel Pre-Auth releases the reserved funds from an open pre-auth.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"PAC"` (Cancel Pre-Auth).
lszApprovalCode	string	M	Approval code from the original Pre-auth. See linking options below.
lszSTAN	string	M	STAN from the original Pre-auth. Search with `FuncType: "PreAuth"` or use stored `PA` response values.

Linking to the original pre-auth

Option 1: Search with FuncType: "PreAuth", select a record, use its lszApprovalCode and lszSTAN.
Option 2: Pass AuthCode and STAN saved from the original PA response.

Request Example — Cancel Pre-Auth

{
  "Merchant": "01",
  "TxnType": "PAC",
  "lszApprovalCode": "328958",
  "lszSTAN": "000030",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Incremental Pre-Auth TxnType: `PT`

An Incremental Pre-Auth increases the reserved amount of an open pre-auth by adding a new amount to the previous authorization.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"PT"` (Incremental Pre-Auth).
Amount	long	M	Additional amount in cents. Must be greater than 0.
lszApprovalCode	string	M	Approval code from the original Pre-auth.
lszSTAN	string	M	STAN from the original Pre-auth. Search with `FuncType: "PreAuth"` or use stored `PA` response values.

Linking to the original pre-auth

Option 1: Search with FuncType: "PreAuth", select a record, use its lszApprovalCode and lszSTAN.
Option 2: Pass AuthCode and STAN saved from the original PA response.

Request Example — Incremental Pre-Auth

{
  "Merchant": "01",
  "TxnType": "PT",
  "Amount": 100,
  "lszApprovalCode": "328958",
  "lszSTAN": "000030",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Pre-auth Partial TxnType: `PP`

A preauth partial transaction type allows the merchant to make a partial payment towards the previous preauth.

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"PP"` (Pre-auth Partial).
Amount	long	M	Partial amount in cents. Must be greater than 0.
lszApprovalCode	string	M	Approval code from the original Pre-auth.
lszSTAN	string	M	STAN from the original Pre-auth. Search with `FuncType: "PreAuth"` or use stored `PA` response values.

Linking to the original pre-auth

Option 1: Search with FuncType: "PreAuth", select a record, use its lszApprovalCode and lszSTAN.
Option 2: Pass AuthCode and STAN saved from the original PA response.

Request Example — Pre-auth Partial

{
  "Merchant": "01",
  "TxnType": "PP",
  "Amount": 100,
  "lszApprovalCode": "328958",
  "lszSTAN": "000030",
  "AsyncMode": "0",
  "WithReceiptImageData": "1",
  "ReceiptType": 1
}

Pre-Auth Reversal TxnType: `PR`

Pre-Auth Reversal reverses an open pre-auth. Uses POST .../transaction with TxnType: "PR".

Also uses all common request fields. Response structure is defined in Transaction Response.

Type-Specific Request Fields

Field Name	Type (Max Length)	M/O	Description
TxnType	string(3)	M	Must be `"PR"` (Pre-Auth Reversal).
lszApprovalCode	string	M	Approval code from the original Pre-auth (`PA`).
lszSTAN	string	M	STAN from the original Pre-auth. Search with `FuncType: "PreAuth"` or use stored `PA` response values.

Linking to the original pre-auth

Option 1: Search with FuncType: "PreAuth", select a record, use its lszApprovalCode and lszSTAN.
Option 2: Pass values saved from the original PA response.

Request Example — Pre-Auth Reversal

{
  "Merchant": "01",
  "TxnType": "PR",
  "lszApprovalCode": "328958",
  "lszSTAN": "000030",
  "AsyncMode": "0"
}

Search Transaction

This request searches for approved transactions stored on the terminal for different purposes — most commonly to find a pre-auth record before performing Complete, Cancel, Top Up, Partial, or Reversal. See Pre-auth Guide for how search fits into the pre-auth flow.

All search filter fields are optional and may be left empty, including FuncType, AuthCode, and Stan.

Request Body Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	O	Specify the merchant to execute the transaction. See Table REQ-01.
FuncType	string(24)	O	Type of stored records to retrieve. Controls which follow-up operations the results support — see Table ENUM-11.
TxnRef	string(64)	O	Filter by transaction reference number.
AuthCode	string(6)	O	Filter by authorization (approval) code. Maps to the payment approval-code search key.
RRN	string	O	Filter by Retrieval Reference Number.
Date	string(8)	O	Filter by transaction date. Format `YYYYMMDD`.
Time	string(10)	O	Filter by transaction time. Format `hh:mm:ss`.
Stan	string(6)	O	Filter by STAN (Systems Trace Audit Number).
Last4Digits	string(4)	O	Filter by last four digits of the card number.
Amount	long	O	Filter by approved amount in cents.
ExAmount	bool	O	Amount matching mode when filtering by `Amount`. True = exact match; false = same-dollar range match. See note below.

ExAmount behaviour

If the amount you want to search is 1050 (i.e. $10.50):

ExAmount: "0" — returns approved transactions with amounts from 1000 to 1099 (same dollar range).
ExAmount: "1" — returns only transactions with amount exactly 1050.

Table ENUM-11 — FuncType field values

Enum table — colocated with Search Transaction. Also in Table Index.

Use FuncType to search for historical results on the terminal. For example, to find pre-auths before performing a Pre-auth Complete, set FuncType to "PreAuth".

FuncType	Used to search for the below transactions
PreAuth	Pre-auth Complete Transaction.
PreAuth	Cancel Pre-Auth Transaction.
PreAuth	Incremental Pre-Auth Transaction.
PreAuth	Pre-auth Partial Transaction.
PreAuth	Pre-Auth Reversal Transaction.
PreAuth	Pre-Auth Inquiry.
PreAuthComplete	Pre-Auth Complete Inquiry.
Reprint	Reprint Transaction.

Transaction Search Response

The search response uses the same transaction response model as a financial transaction — each item in the result set has the same fields as Response.Transaction in Transaction Response. The only difference is cardinality: a normal transaction returns one object; search returns zero or more matching records in Response.Transactions[].

Single transaction vs search

Operation	ResponseType	Payload shape
Purchase, Pre-auth, etc.	`"transaction"`	`Response.Transaction` — one transaction object
Search Transaction	`"transactionsearch"`	`Response.Transactions` — array of transaction objects (same field model per item)

Each element in Transactions[] is an approved payment record. Copy lszApprovalCode and lszSTAN from the selected item for follow-up requests. See Transaction Response for the full field list and enum references.

Search-specific response envelope

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the search request.
ResponseType	string(23)	M	Always `"transactionsearch"` (not `"transaction"`).
Transactions	array	M	Array of transaction objects. Each item uses the Transaction Response field model. May contain 0, 1, or many records.

Do not duplicate-parse a separate schema — treat every Transactions[n] entry as a standard transaction response body (minus the outer SessionId / ResponseType wrapper). Enum values for response fields are in Transaction Response → Reference — Field Enums (Tables 12.5.2–12.5.6).

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/transactionsearch

Request Example — search pre-auths

{
  "Merchant": "01",
  "FuncType": "PreAuth",
  "Amount": 1500,
  "ExAmount": false
}

Response Example — multiple matches

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transactionsearch",
  "Response": {
    "Transactions": [
      {
        "Merchant": "1",
        "TxnType": "PA",
        "Success": "1",
        "lAmount": 1500,
        "lAuthorizedTotal": 1500,
        "Date": "20240405",
        "Time": "22:19:22",
        "lszApprovalCode": "328408",
        "lszSTAN": "000044",
        "lszEndCardNumber": "2955",
        "PID": 8
      },
      {
        "Merchant": "1",
        "TxnType": "PA",
        "Success": "1",
        "lAmount": 2000,
        "lAuthorizedTotal": 2000,
        "Date": "20240406",
        "Time": "10:05:11",
        "lszApprovalCode": "328958",
        "lszSTAN": "000030",
        "lszEndCardNumber": "1111",
        "PID": 9
      }
    ]
  }
}

Each object in Transactions[] follows the Transaction Response model. Pick one item and use its lszApprovalCode / lszSTAN in follow-up requests.

APM Transaction

Alternative payment methods (Alipay, WeChat Pay, CentraPay) use the same POST .../transaction endpoint as card transactions. Set an APM-specific TxnType (below). Refunds require TxnRef; Alipay/WeChat refunds also require OriginalAmount.

The response uses the same model as card transactions — see Transaction Response. ResponseType is always "transaction".

APM request fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	O	Specify the merchant. See Table REQ-01.
TxnType	string(9)	M	APM transaction type — see table below (not the card `P`/`R` codes).
Amount	long	M	Transaction amount in cents. Must be greater than 0 for purchase types.
OriginalAmount	long	C	Original purchase amount in cents. Mandatory for `ALIREF` and `WEREF`. Not used for `QRREF`.
TxnRef	string(64)	C	Reference number on the receipt. Mandatory for `ALIREF`, `WEREF`, and `QRREF`.
AsyncMode	bool	O	Default disabled. Enable async mode — see Sync vs Async.
WithReceiptImageData	bool	O	If enabled, response includes `ReceiptData` and `DigitalSig`.
DisablePrinting	bool	O	If enabled, disable receipt printing for this transaction.
ReceiptType	int	O	Receipt format. See Table REQ-02.
PlainTextCharPerLine	short	O	Plain-text receipt width when `ReceiptType` is plain text.

TxnType values (APM)

TxnType	Operation
ALIPUR	Alipay purchase
WEPUR	WeChat Pay purchase
QRPUR	CentraPay purchase
ALIREF	Alipay refund
WEREF	WeChat Pay refund
QRREF	CentraPay refund

Response fields — same as Transaction Response. Poll with Query Transaction when AsyncMode is enabled.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/transaction

CentraPay purchase
Alipay refund
{
  "Merchant": "01",
  "TxnType": "QRPUR",
  "Amount": 1500,
  "TxnRef": "APM-001",
  "AsyncMode": false,
  "WithReceiptImageData": true,
  "ReceiptType": 1
}
{
  "Merchant": "01",
  "TxnType": "ALIREF",
  "Amount": 1500,
  "OriginalAmount": 1500,
  "TxnRef": "APM-001",
  "AsyncMode": false,
  "WithReceiptImageData": true,
  "ReceiptType": 1
}

Approved
Declined
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transaction",
  "Response": {
    "Transaction": {
      "Merchant": "1",
      "TxnType": "QRPUR",
      "Success": true,
      "IdShift": 1,
      "IdShiftName": 0,
      "lAmount": 1500,
      "lTipAmount": 0,
      "lCashOut": 0,
      "lAuthorizedTotal": 1500,
      "iEntryMode": 17,
      "szAuthorizationResponseCode": "00",
      "lszApprovalCode": "327710",
      "lszSTAN": "000018",
      "PID": 8,
      "Date": "20240404",
      "Time": "15:14:02",
      "ReceiptType": 1
    }
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transaction",
  "Response": {
    "Transaction": {
      "TxnType": "QRPUR",
      "Success": false,
      "ResponseText": "Transaction Cancelled",
      "lAmount": 0,
      "lAuthorizedTotal": 0,
      "ReceiptType": 1
    }
  }
}

Reprint

Finds and reprints a stored receipt using the transaction RRN. The terminal searches reprint records with FunctionType.Reprint.

Request Body Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	O	Merchant to execute the reprint. See Table REQ-01.
RRN	string(6)	M	Last 6 digits of the transaction Retrieval Reference Number. The terminal searches for a stored receipt whose reference number ends with these digits.
WithReceiptImageData	bool	O	If enabled, include `ReceiptData` and `ReceiptLogo` in the response.
ReceiptType	int	O	Receipt format. See Table REQ-02.
PlainTextCharPerLine	short	O	Plain-text receipt width when `ReceiptType` is plain text.
DisablePrinting	bool	O	If enabled, disable receipt printing.

RRN lookup

Send exactly the last 6 digits of the RRN returned for the original transaction.
If more than one stored receipt matches, the most recent matching receipt is reprinted.
A missing or shorter RRN returns an invalid-RRN error; no match returns an RRN-not-found error.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"reprint"`.
Merchant	number	O	Merchant identifier.
Success	bool	M	Whether the operation succeeded (true) or failed (false).
ResponseText	string	M	Response description (e.g. `"Reprinted Successfully"`).
ReceiptData	string	O	Receipt content.
ReceiptLogo	string	O	Base64-encoded receipt logo.
DigitalSig	string	O	Base64-encoded digital signature when returned.
ReceiptType	int	M	Receipt format returned. See Table RES-01.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/reprint

Request Example

{
  "RRN": "123456"
}

Response Example (Success)

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "reprint",
  "Response": {
    "Merchant": 1,
    "Success": true,
    "ResponseText": "Reprinted Successfully",
    "ReceiptData": "...",
    "ReceiptLogo": "iVBORw0KGgoAAAANSUhEUg...",
    "ReceiptType": 1
  }
}

Card Verification

Verifies the validity of a card without performing a financial transaction. The cardholder presents or inserts/taps their card; the terminal returns card details and authorization status.

Request Body Fields

Property	Type	M/O	Description
Merchant	string(2)	O	Specify the merchant to execute the transaction. See Table REQ-01.
ReceiptType	int	O	Receipt format. See Table REQ-02.
WithReceiptImageData	bool	O	If enabled, response includes `ReceiptData` and `ReceiptLogo`.
PlainTextCharPerLine	short	O	Plain-text receipt width when `ReceiptType` is plain text.
DisablePrinting	bool	O	If enabled, disable receipt printing.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"querycard"`.
Merchant	string(2)	O	Merchant identifier.
Success	bool	M	Whether the transaction is approved (true) or declined (false).
ResponseCode	string	O	Response code from the terminal.
ResponseText	string	M	Response description.
CardType	uint	O	Card type code.
CardName	string	O	Cardholder name.
AccountType	string(2)	O	Account type.
Pan	string(32)	O	Masked card number.
AuthCode	string(6)	O	Authorization code.
EntryMode	uint	O	Entry mode. See Table ENUM-04.
ReceiptData	string	O	Contains the receipt data of the transaction.
ReceiptLogo	string	O	Contains the logo to be printed on the receipt.
DigitalSig	string	O	Base64-encoded digital signature when returned.
ReceiptType	int	M	Receipt format returned. See Table RES-01.

EntryMode values — see Table ENUM-04 under Transaction → Field Enums.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/querycard

Request Example

{
  "Merchant": "01",
  "ReceiptType": 1,}

Approved
Declined
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "querycard",
  "Response": {
    "Success": "1",
    "ResponseText": "APPROVED",
    "AccountType": "2",
    "Pan": "**** ***** **** 1111",
    "CardType": 1,
    "EntryMode": 4,
    "AuthCode": "329514",
    "ReceiptData": "...",
    "ReceiptLogo": "iVBORw0KGgoAAAANSUhEUg...",
    "ReceiptType": 1
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "querycard",
  "Response": {
    "Success": "0",
    "ResponseText": "Declined",
    "ReceiptType": 1
  }
}

Settlement Enquiry

Retrieves settlement subtotals without performing an actual settlement cutover. Use "E" for current / pre-settlement totals, "L" for last settlement (or other-date enquiry with SettlementDate), and "C" for cutover.

Settlement Enquiry and Settlement Cutover share the same POST .../settlement endpoint, request body, and response model. The only request difference is SettlementType.

Settlement types

Operation	`SettlementType`	Request / response
Settlement Enquiry (Pre)	`"E"`	Same — see request and response below
Last Settlement Enquiry / Other Date	`"L"`
Settlement Cutover	`"C"`

Settlement request fields (shared)

Property	Type	M/O	Description
Merchant	string(2)	O	Specify the merchant to execute the transaction. See Table REQ-01.
SettlementType	string(1)	M	`"E"` = Enquiry (Pre), `"L"` = Last Settlement / Other Date, `"C"` = Cutover.
SettlementDate	string(12)	O	Settlement date for enquiry. Format `dd/MM/yyyy`. If omitted on enquiry, the terminal uses today's date.
AccessCode	string(8)	O	Operator access code when the terminal requires it for settlement.
WithReceiptImageData	bool	O	If enabled, include `ReceiptData` and `ReceiptLogo` in the response.
ReceiptType	int	O	Receipt format. See Table REQ-02.
PlainTextCharPerLine	short	O	Plain-text receipt width when `ReceiptType` is plain text.
DisablePrinting	bool	O	If enabled, disable receipt printing.

Settlement response fields (shared)

Identical response structure for all settlement types — ResponseType is always "settlement".

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"settlement"`.
Success	bool	M	Whether the transaction is approved (true) or declined (false).
ResponseText	string	O	Text of response. Commonly occurs when a transaction is declined.
Merchant	number	M	Merchant identifier.
ReceiptData	string	O	Settlement receipt content.
ReceiptLogo	string	O	Base64-encoded logo.
DigitalSig	string	O	Base64-encoded digital signature when returned.
ReceiptType	int	M	Receipt format returned.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/settlement

Request Example

{
  "Merchant": "01",
  "SettlementType": "E",
  "AccessCode": "0000",
  "DisablePrinting": false,
  "WithReceiptImageData": true,
  "ReceiptType": 1
}

Success
Failed
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "settlement",
  "Response": {
    "Merchant": 1,
    "Success": true,
    "ReceiptData": "...",
    "ReceiptType": 1
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "settlement",
  "Response": {
    "Merchant": 1,
    "Success": false,
    "ResponseText": "Transaction Cancelled",
    "ReceiptType": 1
  }
}

Settlement Cutover

Performs an end-of-day settlement cutover, closing the current batch and reconciling totals with the host. Unlike Enquiry, this is a permanent settlement action.

Uses the same POST .../settlement endpoint and models as Settlement Enquiry — see Settlement request fields and Settlement response fields. Set SettlementType to "C".

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/settlement

Request Example

{
  "Merchant": "01",
  "SettlementType": "C",
  "AccessCode": "0000",
  "DisablePrinting": false,
  "WithReceiptImageData": true,
  "ReceiptType": 1
}

Success
Failed
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "settlement",
  "Response": {
    "Merchant": 1,
    "Success": true,
    "ReceiptData": "...",
    "ReceiptType": 1
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "settlement",
  "Response": {
    "Merchant": 1,
    "Success": false,
    "ResponseText": "Cannot Complete",
    "ReceiptType": 1
  }
}

Manual Host Logon

Initiates a manual host logon. Typically required at the start of the business day or after a network issue. The terminal must be logged on before processing financial transactions.

Request Body Fields

Property	Type	M/O	Description
Merchant	string(2)	O	Specify the merchant to execute the transaction. See Table REQ-01.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"logon"`.
Success	bool	M	Whether the operation succeeded (true) or failed (false).
ResponseText	string	O	Error description on failure.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/logon

Request Example

{
  "Merchant": "01"
}

Success
Failed
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "logon",
  "Response": {
    "Success": "1"
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "logon",
  "Response": {
    "Success": "0",
    "ResponseText": "LOGON FAILED\nTRANSMISSION ERROR"
  }
}

Print Stored Transactions

Triggers the terminal to print a report of stored (offline/EOV) transactions. The response contains summary counts and totals by entry method.

Request Body Fields

Property	Type	M/O	Description
Merchant	string(2)	O	Specify the merchant to execute the transaction. See Table REQ-01.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"printstoredtransactions"`.
IdProcessor	uint	M	Processor ID.
EOVCount	uint	M	Count of EOV (end-of-visit) transactions.
EOVTotal	uint	M	Total value of EOV transactions.
CTLSCount	uint	M	Count of contactless transactions.
CTLSTotal	uint	M	Total value of contactless transactions.
ContactCount	uint	M	Count of contact (insert) transactions.
ContactTotal	uint	M	Total value of contact transactions.
CurrencyCode	uint	M	ISO currency code.
CountryCode	uint	M	ISO country code.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/printstoredtransactions

Request Example

{
  "Merchant": "01"
}

Response Example

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "printstoredtransactions",
  "Response": {
    "IdProcessor": 1,
    "EOVCount": 0,
    "EOVTotal": 0,
    "CTLSCount": 3,
    "CTLSTotal": 5500,
    "ContactCount": 1,
    "ContactTotal": 1200,
    "CurrencyCode": 554,
    "CountryCode": 554
  }
}

Print Pending Transactions

Triggers the terminal to print a report of pending transactions (transactions initiated but not yet settled or confirmed).

Request Body Fields

Property	Type	M/O	Description
Merchant	string(2)	O	Specify the merchant to execute the transaction. See Table REQ-01.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"printpendingtransaction"`.
PendingCount	uint	M	Number of pending transactions.
OutstandingCount	uint	M	Number of outstanding transactions.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/printpendingtransaction

Request Example

{
  "Merchant": "01"
}

Response Example

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "printpendingtransaction",
  "Response": {
    "PendingCount": 0,
    "OutstandingCount": 0
  }
}

Cancel Transaction

Cancels a transaction that is currently in progress on the terminal. The sessionId in the URL must match the sessionId of the transaction you want to cancel.

If the transaction has already passed the point of no return (e.g. processing at the host), the cancellation will be declined.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the transaction being cancelled.
ResponseType	string	M	Always `"canceltransaction"`.
Success	bool	M	True = cancelled; false = cancellation declined.
ResponseText	string	M	Response description.

Endpoint

GET/POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/canceltransaction

No request body required

Cancelled
Declined
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "canceltransaction",
  "Response": {
    "Success": "1",
    "ResponseText": "Transaction Cancelled"
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "canceltransaction",
  "Response": {
    "Success": "0",
    "ResponseText": "Cannot Cancel Transaction"
  }
}

Query Transaction

Polls the current status of a transaction initiated in async mode. The sessionId in the URL must match the original transaction's sessionId.

When Status = 11 (WaitingForSignatureConfirmationFromClient) and DigitalSig is present in the response, call Approve Signature with the same sessionId — see Table ENUM-12.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the transaction.
ResponseType	string	M	Always `"querytransaction"`.
Status	int	M	Transaction status code. Possible values are listed in Table ENUM-12.
StatusText	string	M	Text of status of transaction. See Table ENUM-12.
IsCancelable	bool	O	Whether the current async flow can be canceled at this stage.
PrinterStatus	string	O	Printer state text returned by the terminal when available (for example out-of-paper / ready).
Transaction	object	M	Includes the response transactions corresponding to the FuncType on the terminal. This field has a value only when the status of the transaction equals `1` (`TransactionCompleted`) — see Table ENUM-12.

Endpoint

GET https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/querytransaction

No request body required

Completed
In Progress
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "querytransaction",
  "Response": {
    "Status": 1,
    "StatusText": "Transaction completed",
    "IsCancelable": false,
    "PrinterStatus": "Printer Ready",
    "Transaction": {
      "TxnType": "P",
      "Success": "1",
      "lAmount": 2000,
      "lAuthorizedTotal": 2000,
      "szAuthorizationResponseCode": "00",
      "lszApprovalCode": "327710",
      "ReceiptType": 1
    }
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "querytransaction",
  "Response": {
    "Status": 2,
    "StatusText": "Initializing transaction",
    "IsCancelable": true,
    "PrinterStatus": "",
    "Transaction": null
  }
}

Voucher Entry

Uploads stored offline (voucher) transactions from the terminal to the host. POSClient labels this Voucher Entry. Path is POST .../voucherEntry.

Request Body Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	M	Specify the merchant to execute the transmission. See Table REQ-01.
ReceiptType	int	O	Receipt format for any receipt data returned. See Table REQ-02.
PlainTextCharPerLine	short	O	Plain-text receipt width when `ReceiptType` is plain text.
DisablePrinting	bool	O	If enabled, disable receipt printing.

Response Fields

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request transaction.
ResponseType	string(23)	M	Always `"voucherEntry"`.
Success	bool	M	Whether the transmission succeeded (true) or failed (false).
ResponseText	string(64)	M	Response description (e.g. `TRANSMISSION COMPLETE`, `No Offline Trans To Upload`).
TransmissionDate	string	M	Date used for searching. Format: `YYYYMMDD`.
TransmissionTime	string	M	Time used for searching. Format: `hh:mm:ss`.
ReceiptData	string	O	Receipt content when returned by the terminal.
ReceiptLogo	string	O	Base64-encoded receipt logo.
DigitalSig	string	O	Digital signature image data when applicable.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/voucherEntry

Request Example

{
  "Merchant": "01"
}

Success
No records
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "voucherEntry",
  "Response": {
    "Success": true,
    "ResponseText": "TRANSMISSION COMPLETE",
    "TransmissionDate": "10112024",
    "TransmissionTime": "10:10:00"
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "voucherEntry",
  "Response": {
    "Success": true,
    "ResponseText": "No Offline Trans To Upload",
    "TransmissionDate": "10112024",
    "TransmissionTime": "10:10:00"
  }
}

Shift Actions

Runs shift operations on the terminal (start a new shift, print current shift summary, or open shift setup). Path is POST .../shiftactions. Response type is "shiftactions".

Request Body Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	O	Merchant for the shift action. See Table REQ-01.
FunctionType	string(24)	M	Shift action discriminator — see FunctionType values below. Invalid or missing values return Invalid Request Data.

FunctionType values

FunctionType	Description
StartNewShift	Start a new shift.
CurrentShiftSummary	Print / return the current shift summary (shift totals).
ShiftSetup	Open the shift setup menu on the terminal.

Response Fields

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"shiftactions"`.
Success	bool	M	Whether the shift action succeeded (true) or failed (false).
ResponseText	string	O	Response description.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/shiftactions

Request Example — CurrentShiftSummary

{
  "Merchant": "01",
  "FunctionType": "CurrentShiftSummary"
}

Response Example

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "shiftactions",
  "Response": {
    "Success": true,
    "ResponseText": "APPROVED"
  }
}

Reports

Prints terminal reports (sales, shifts, diagnostic, SAF). Path is POST .../reports.

Request Body Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	M	Merchant to run the report for. See Table REQ-01.
FunctionType	string	M	Report type — see FunctionType values table below.
PaymentMethod	string	O	Payment method filter. See Accepted Values below.
TransactionType	string	O	Transaction type filter. See Accepted Values below.
ReportType	string	O	Report grouping. See Accepted Values below.
StartDate	string(8)	O	Start date filter. Format `YYYYMMDD`.
EndDate	string(8)	O	End date filter. Format `YYYYMMDD`.
AccessCode	string(8)	O	Operator access code when the terminal requires it for reports.

Accepted Values

PaymentMethod — None, EftPayment, AliPay, WeChat, Other.
TransactionType — All, Purchase, Refund, PurchaseCash, CashOut, PreAuth, PreAuthComplete. For AliPay/WeChat PaymentMethod the terminal overrides this internally.
ReportType — DETAIL, SUMMARY, DATETIME, ISSUER, EMPLOYEE, BYCARDTYPE. NONE is rejected.

FunctionType values

FunctionType	Description	Required fields (beyond Merchant)
Diagnostic	Diagnostic report.	—
CurrentSale	Current sales report.	`PaymentMethod`, `TransactionType`, `ReportType`
PreviousSales	Previous sales report.	`PaymentMethod`, `TransactionType`, `ReportType`
HistorySales	History sales report (date range).	`PaymentMethod`, `TransactionType`, `ReportType`, `StartDate`, `EndDate`
DeleteSales	Delete sales report (date range).	`StartDate`, `EndDate`
PrintAndClearSAF	Print and clear SAF.	—
CurrentShift	Current shift report.	—
PreviousShifts	Previous shifts report.	—
HistoryShifts	History shifts report (date range).	`StartDate`, `EndDate`

Response Fields

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"reports"`.
Success	bool	M	Whether the report succeeded (true) or failed (false).
ResponseText	string	M	Response description.
ReceiptData	string	O	Report receipt content when returned.
ReceiptLogo	string	O	Base64-encoded receipt logo when returned.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/reports

Request Example — CurrentSale

{
  "Merchant": "01",
  "FunctionType": "CurrentSale",
  "PaymentMethod": "EftPayment",
  "TransactionType": "All",
  "ReportType": "DATETIME",
  "AccessCode": "0000"
}

Response Example

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "reports",
  "Response": {
    "Success": true,
    "ResponseText": "APPROVED",
    "ReceiptData": ""
  }
}

Transaction Listing

Prints the transaction listing for the selected merchant. Path is POST .../transactionlisting.

Only the main Transaction Listing operation is supported. Memory Full, Host Forced Settlement Listing, and Settlement Initiated Listing are not exposed on this API.

Request Body Fields

Field Name	Type (Max Length)	M/O	Description
Merchant	string(2)	M	Merchant to list transactions for. See Table REQ-01.

Response Fields

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"transactionListing"`.
Success	bool	M	Whether the listing succeeded (true) or failed (false).
ResponseText	string	M	Response description.
ReceiptData	string	O	Listing receipt content when returned.
ReceiptLogo	string	O	Base64-encoded receipt logo when returned.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/transactionlisting

Request Example

{
  "Merchant": "01"
}

Response Example

{
  "SessionId": "{{sessionId}}",
  "ResponseType": "transactionListing",
  "Response": {
    "Success": true,
    "ResponseText": "APPROVED",
    "ReceiptData": ""
  }
}

Dump Logs

Dumps the payment app's log to a text file for debugging. The request uses POST and does not require a request body.

Response Fields

Field Name	Type (Max Length)	M/O	Description
SessionId	string(36)	M	SessionId of the request transaction.
ResponseType	string(23)	M	Always `"dumplogs"`.
Success	bool	M	Whether log dump succeeded (true) or failed (false).
ResponseText	string(30)	M	Response description.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/dumplogs

No request body required

Success
Failed
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "dumplogs",
  "Response": {
    "Success": true,
    "ResponseText": "Logs Dumped Successfully"
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "dumplogs",
  "Response": {
    "Success": false,
    "ResponseText": "Logs Dump Failed"
  }
}

Approve Signature

This function enables customers to approve signature-required transactions through the client app, provided that AsyncMode is enabled. Call this endpoint when querytransaction returns Status = 11 (WaitingForSignatureConfirmationFromClient) with a DigitalSig field — see Table ENUM-12.

Flow: POS submits transaction (AsyncMode enabled) → polls querytransaction → when Status=11 and DigitalSig present, call approvesignature (same sessionId) with Approval approve/reject → continue polling until Status=1.

Request Body Fields

Property	Type	M/O	Description
Approval	bool	M	True = approve the signature; false = reject the signature.

Response Fields

Property	Type	M/O	Description
SessionId	string(36)	M	SessionId of the request.
ResponseType	string	M	Always `"approvesignature"`.
Success	bool	M	True = updated; false = failed.
ResponseText	string(30)	M	Response description.

Endpoint

POST https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/approvesignature

Request Example

{
  "Approval": "1"
}

Success
Failed
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "approvesignature",
  "Response": {
    "Success": "1",
    "ResponseText": "Update Successfully"
  }
}
{
  "SessionId": "{{sessionId}}",
  "ResponseType": "approvesignature",
  "Response": {
    "Success": "0",
    "ResponseText": "Update Failed"
  }
}

Device mode

Device-mode indicates whether the client and payment app run on the same device.

Value	Description
on	Same device
off	Separate devices

The device-mode query parameter is optional and applies to all API endpoints that end with /transaction. If you don't include it in the request URL, the system assumes device-mode=off by default, meaning the client and the device are running on separate devices.

Device-mode api request

Devices-mode request looks like this.

https://{{pos-server}}:{{pos-port}}/v1/sessions/{{sessionId}}/transaction?device-mode=on

Reference Table Index

All lookup tables use a consistent ID format — not the legacy Word section numbers. Prefix indicates the table group; the number is sequential within that group.

REQ-## — request field logic (under Transaction → Request field logic)
RES-## — response field logic (under Transaction → Response field logic)
ENUM-## — field enum values (named constants / allowed values for a field). Most live under Transaction → Field Enums; some are colocated with the API that uses them (e.g. Mode on Get Merchant List).

Placement rule: REQ / RES tables and the main ENUM set live under Transaction. ENUM tables for a single endpoint may sit next to that endpoint — the ENUM prefix still applies because the content is a value list.

Transaction — request field logic

Table	Title	Used by
REQ-01	Merchant field logic	`Merchant` on transaction and other requests
REQ-02	ReceiptType field logic (request)	`ReceiptType` request field

Transaction — response field logic

Table	Title	Used by
RES-01	ReceiptType field logic (response)	`ReceiptType` in transaction/search/reprint responses

Transaction — structured receipt

Section	Title	Used by

Transaction — field enums

Table	Title	Field
ENUM-01	`fsModify` field values	`fsModify`
ENUM-02	`iAccountType` field values	`iAccountType`
ENUM-03	`iCardType` field values	`iCardType`
ENUM-04	`EntryMode` / `iEntryMode` field values	`iEntryMode`, Card Verification `EntryMode`
ENUM-05	`iPaymentType` field values	`iPaymentType`
ENUM-06	`iCustomerLanguage` field values	`iCustomerLanguage`
ENUM-07	`iReversalReason` field values	`iReversalReason`
ENUM-08	`byPinType` field values	`byPinType`
ENUM-09	`byPinStatus` field values	`byPinStatus`
ENUM-10	`Mode` field values	Get Merchant List → `Mode`
ENUM-11	`FuncType` field values	Search Transaction → `FuncType`
ENUM-12	`Status` and `StatusText` field values	Sync vs Async, Query Transaction
ENUM-13	`iCVVStatus` values	Transaction Response
ENUM-14	`iMotoOrderType` values	Transaction Response

Changelog

Version history for the POS Integration API specification.

QA_1.3.19 2026/07/31 by Lien Le

NEWVoid (TxnType: "V") and Shift Actions (/shiftactions) CHANGEDSettlementType last enquiry "R" → "L"; document SettlementDate NEWPreEMVFee request/response fields for POS Integration (EnablePreEMVFee, fee flags/amounts, lPreEMVPurchaseFee, lPreEMVCashOutFee) CHANGEDCash Out (TxnType: "C") request amount field from Amount to AmtCash

QA_1.3.18 2026/07/22 by Lien Le

NEWAPI v1.3.18 developer doc for WPAY

POS Integration API

Introduction

Sync vs Async Mode

Summary

Summary

API Requests

API Responses

HTTP status

Business fields (HTTP 200)

1. Success (HTTP 200)

2. Business failure (HTTP 200)

3. Error / exception (HTTP 400 / 401 / 403)

Quick reference

Boolean Type

Build a Server Validation Handler

Get Merchant List

Get Allowed Transactions

Health Check

Bring App To Foreground

Transaction

Common Request Fields

EnableTip behaviour

EnablePreEMVFee behaviour

Reference — Request field logic

Transaction Response

Reference — Response field logic

Reference — Field Enums

Purchase TxnType: P

Refund TxnType: R

Void TxnType: V

Linking to the original transaction

Cash Out TxnType: C

Purchase & Cash TxnType: PC

MOTO Purchase TxnType: MP

MOTO Refund TxnType: MR

Pre-auth Family — Developer Guide

Linking follow-up requests

Search Transaction ↔ Pre-auth

Pre-auth TxnType: PA

After approval

Pre-auth Complete TxnType: AC

Linking to the original pre-auth

Cancel Pre-Auth TxnType: PAC

Linking to the original pre-auth

Incremental Pre-Auth TxnType: PT

Linking to the original pre-auth

Pre-auth Partial TxnType: PP

Linking to the original pre-auth

Pre-Auth Reversal TxnType: PR

Linking to the original pre-auth

Search Transaction

ExAmount behaviour

Single transaction vs search

APM Transaction

Reprint

RRN lookup

Card Verification

Settlement Enquiry

Settlement types

Settlement Cutover

Manual Host Logon

Print Stored Transactions

Print Pending Transactions

Cancel Transaction

Query Transaction

Voucher Entry

Shift Actions

Reports

Transaction Listing

Dump Logs

Approve Signature

Device mode

Reference Table Index

Changelog

Purchase TxnType: `P`

Refund TxnType: `R`

Void TxnType: `V`

Cash Out TxnType: `C`

Purchase & Cash TxnType: `PC`

MOTO Purchase TxnType: `MP`

MOTO Refund TxnType: `MR`

Pre-auth TxnType: `PA`

Pre-auth Complete TxnType: `AC`

Cancel Pre-Auth TxnType: `PAC`

Incremental Pre-Auth TxnType: `PT`

Pre-auth Partial TxnType: `PP`

Pre-Auth Reversal TxnType: `PR`
